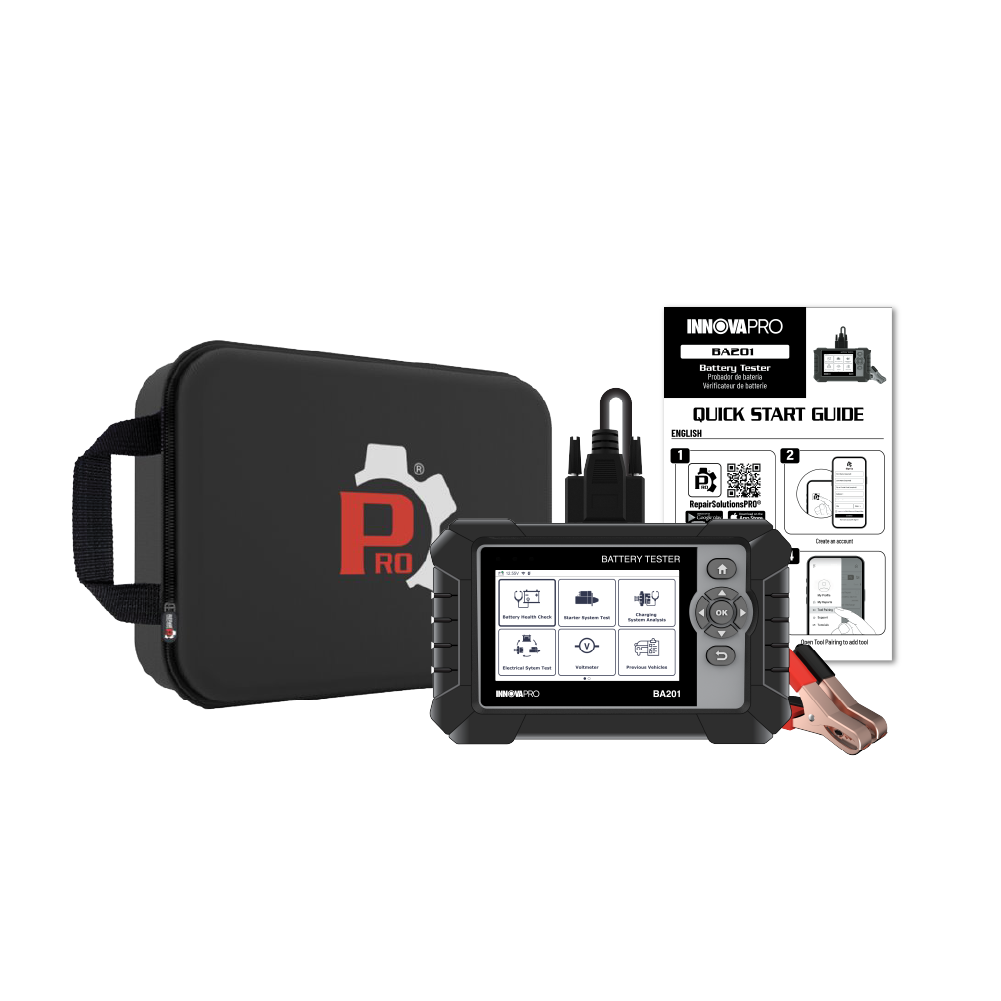

INNOVAPRO BA201 wireless diagnostic tablet kit with protective carrying case, clamps, and quick start guide

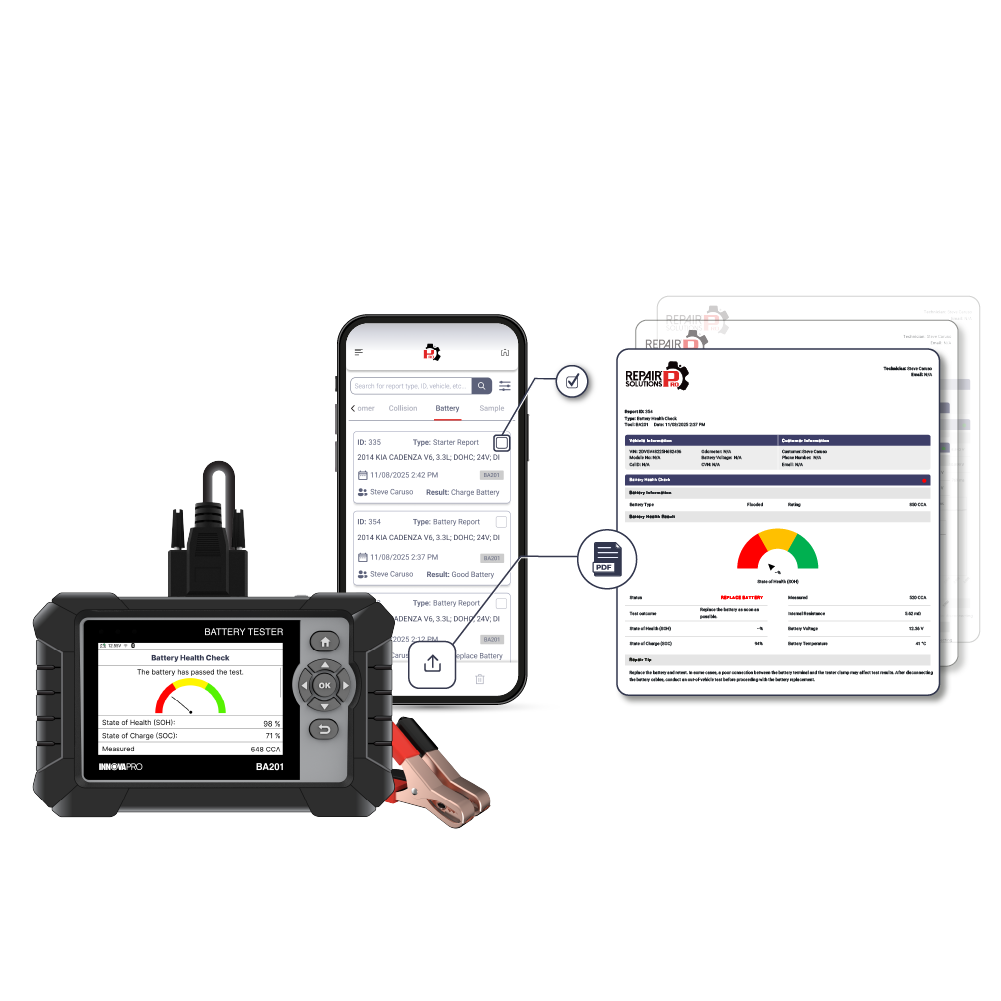

INNOVAPRO BA201 battery tester tablet alongside mobile app screen and diagnostic PDF report printout

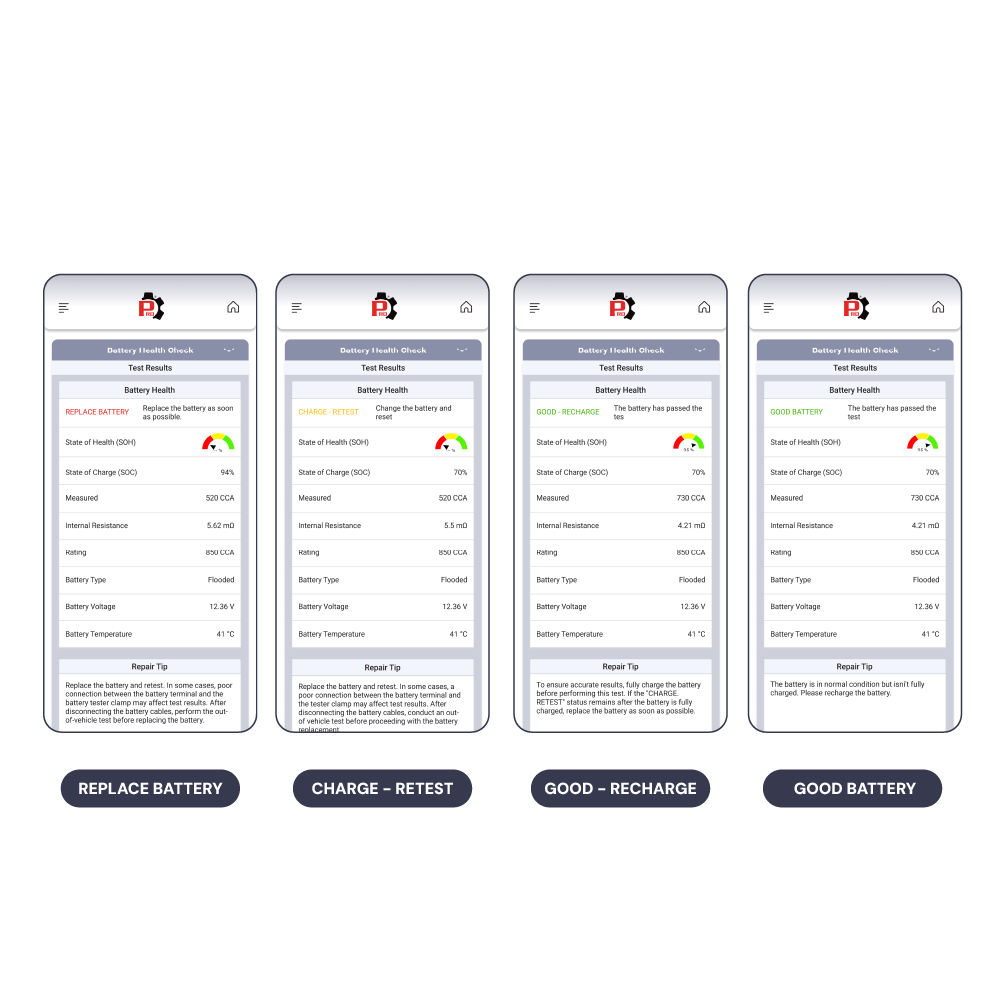

Compilation of four mobile app screens showing battery test reports and state of health analysis

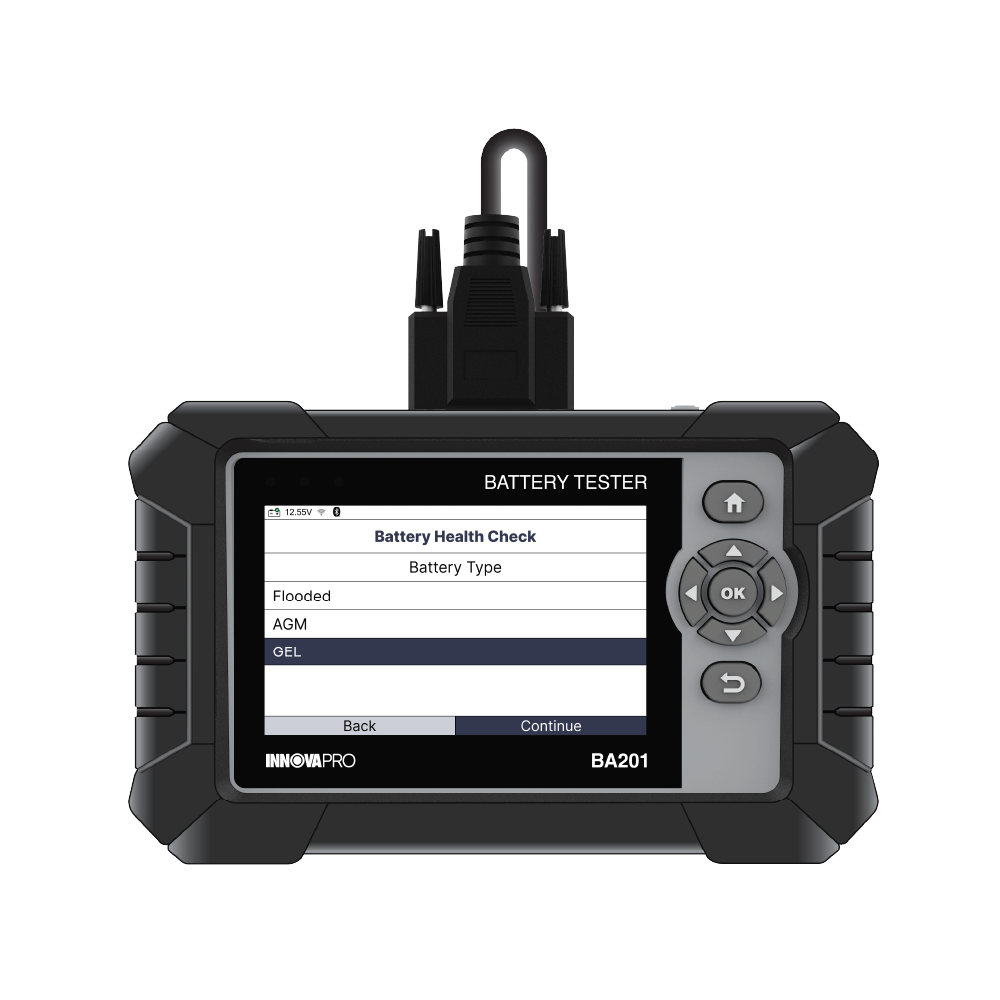

BA201 battery tester tablet screen showing battery type selection options including Regular Flooded, AGM Flat Plate, and Gel

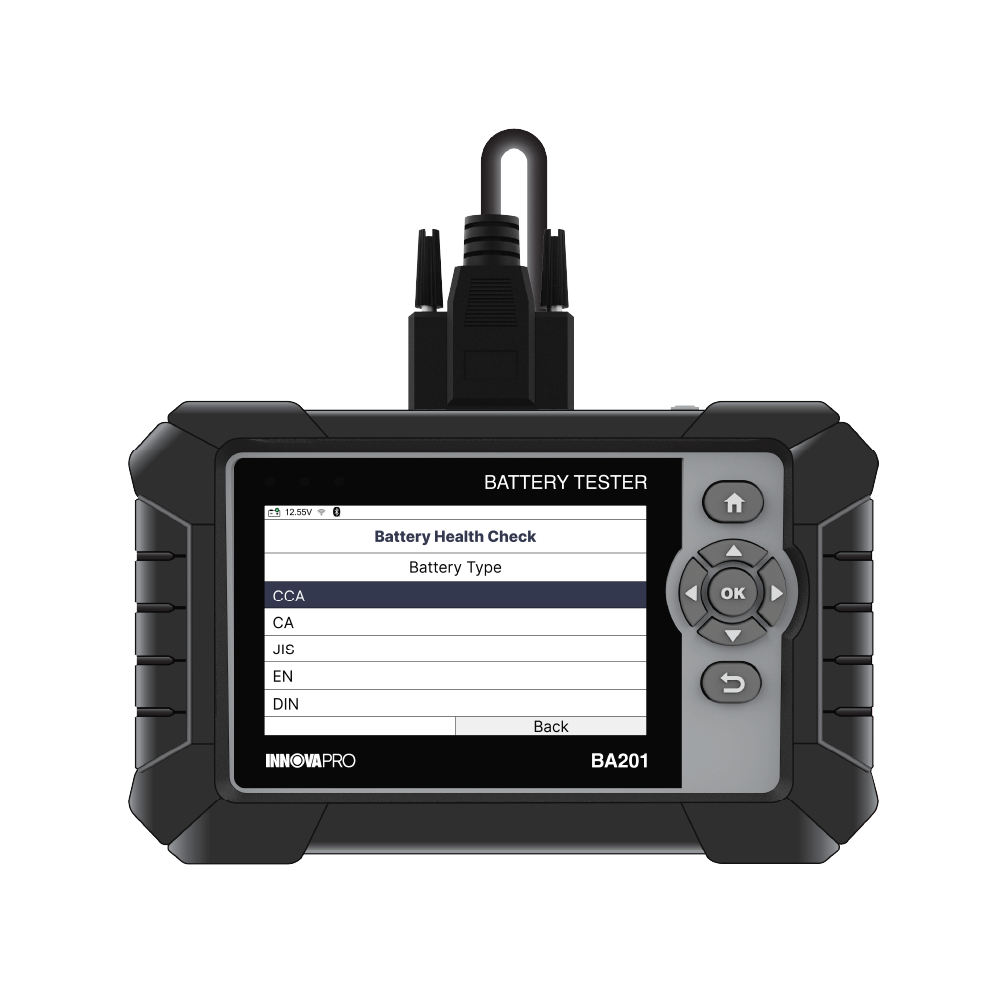

BA201 battery tester tablet screen displaying battery standard selection list including CCA, CA, MCA, and EN standards

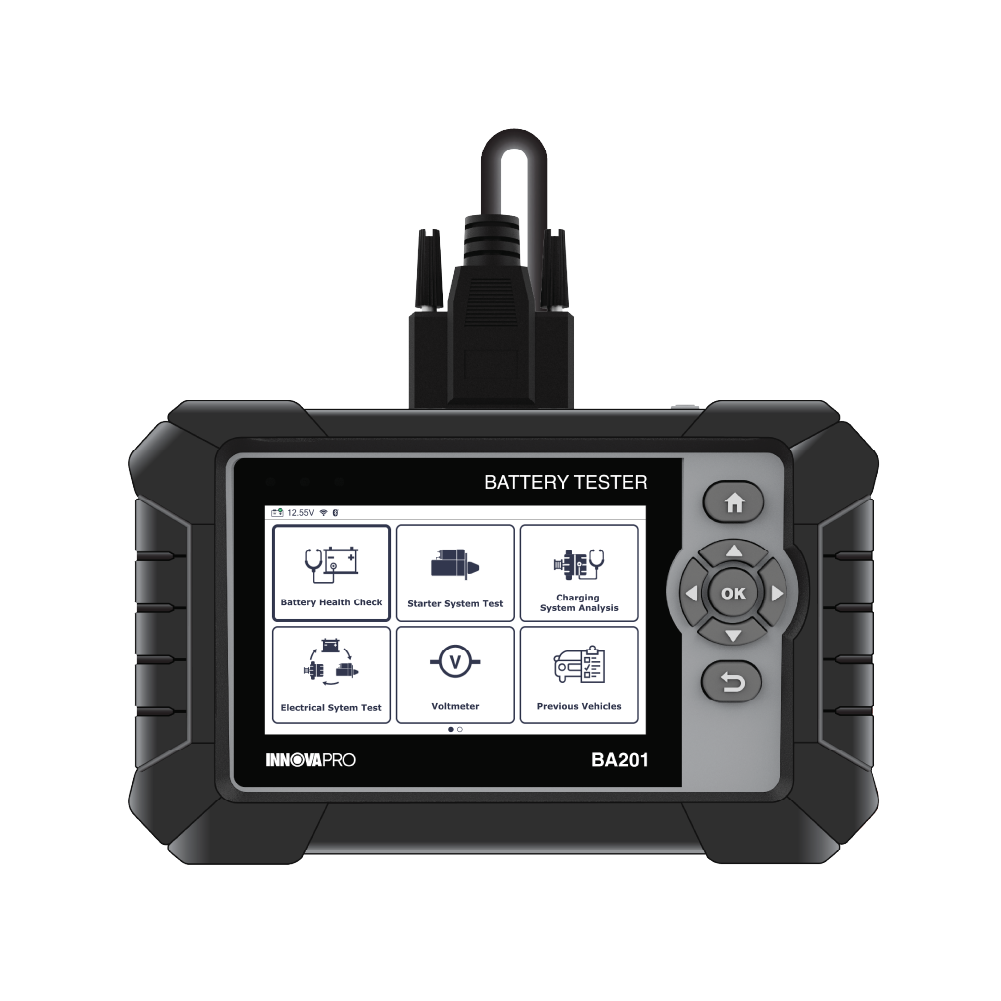

INNOVAPRO BA201 professional battery tester tablet front view showing the main menu screen
INNOVAPRO BA201 professional battery tester tablet showing the main menu screen with diagnostic options

BA201: Battery Tester

Compatible with RepairSolutionsPRO®

The INNOVAPRO BA201 Battery Tester is a fully standalone diagnostic tool engineered to deliver comprehensive testing of a vehicle's battery and electrical systems. Equipped with a large 4.3-inch color display for clear result viewing, it also pairs with the RepairSolutionsPRO® mobile app to streamline data storage, reporting, and test history management.

Features & Specifications

Features

Compatible with RepairSolutionsPRO®
The BA201 battery tester pairs via Wi-Fi or BLE with the RSPRO® app to submit test reports, access repair tips, and manage reports.
Battery Health Check/ In-Vehicle Test
Tests the battery right on the vehicle. Evaluates SOH/ SOC under real vehicle loads, delivering 4 clear results — Good, Recharge, Retest, Replace.
Battery Health Check/ Out-of-Vehicle Test
Tests a bench or uninstalled battery with no vehicle-load interference. Accurately verifies cold cranking capacity, terminal voltage, and internal resistance.
Starter System Test
Evaluates the starter system by measuring cranking voltage, drop voltage, and starting time, identifying Cranking Normal, Charge Battery, Low Voltage, or No Start conditions.*Do not perform on Smart Alternator, Hybrid, or Electric vehicles.
Charging System Analysis
Analyzes alternator output voltage and AC ripple across loaded/ no-load and idle/ high-rev conditions to detect Output Too Low, Output Too High, Excessive Ripple, or No Output faults.*Do not perform on Smart Alternator, Hybrid, or Electric vehicles.
Electrical System Test
A guided 3-step sequence — Battery Health Check, Starter System Test, and Charging System Analysis for a complete electrical system assessment.*Do not perform on Smart Alternator, Hybrid, or Electric vehicles.
Voltmeter (12V)
Functions like a DMM, continuously measuring the vehicle's battery DC voltage.
Cranking Voltage Graph View
Displays a cranking voltage graph after the test to pinpoint voltage dips during starter cranking.
LED Indicator Status
Features three diagnostic LEDs to indicate test results: Green (Good), Yellow (Warning), and Red (Bad).
Battery Temperature
Reads battery temperature during testing.
History Report
Complete a test on the tablet, then sync it to the RSPRO® app via Wi-Fi or BLE to submit the report. Once submitted, your reports synchronize across the RSPRO® app and web portal, so you can review, share, or edit customer and shop details anytime. View sample report
Operating Voltage Range
Operates across a 6V–24V DC input range to test batteries and electrical systems.
CCA Range
Tests batteries rated from 100 to 2000 CCA across passenger cars, SUVs, and light trucks.
Test Range
Tests 12V lead-acid automotive batteries.
Battery Type
Supports testing across Flooded, AGM, and GEL battery types.
Battery Standard
Supports testing input ratings across CCA, CA, JIS, EN, DIN, SAE, and IEC standards.
Application
Works with passenger cars, SUVs, and light trucks.

Specifications

Cable
DB15 Detachable Battery Cable
Internal Batteries
4.5V (3x AA batteries)
Memory
16 MB
Screen Size
4.3”

Product Includes

INNOVAPRO BA201 Battery Tester
Quick Start Guide
RSPRO® Pouch
DB15 Detachable Battery Cable

Get More Information From Our Videos

View All Videos

Teaser

Introduction

INNOVA BA201 FAQs

  • Turn on Bluetooth on your phone and power on the Battery Tester by connecting it to a battery. Make sure your phone is on Wi-Fi (required the first time), open the RSPRO app, tap Continue, and select your tester on the Tool Pairing screen to complete pairing. Once paired, test data transfers automatically. Registered users can reconnect via Bluetooth alone afterward

  • Results fall into four categories: Good Battery (healthy, retest every 90 days), Good – Recharge (healthy but needs a charge), Charge – Retest (recharge fully and retest; replace if it persists), and Replace Battery (indicates that the battery should be replaced; check connections and retest before replacing).

  • Flooded, AGM, and GEL 12V batteries, tested against seven standards — CCA, CA, JIS, EN, DIN, SAE, and IEC — with a CCA range of 100–2000.
