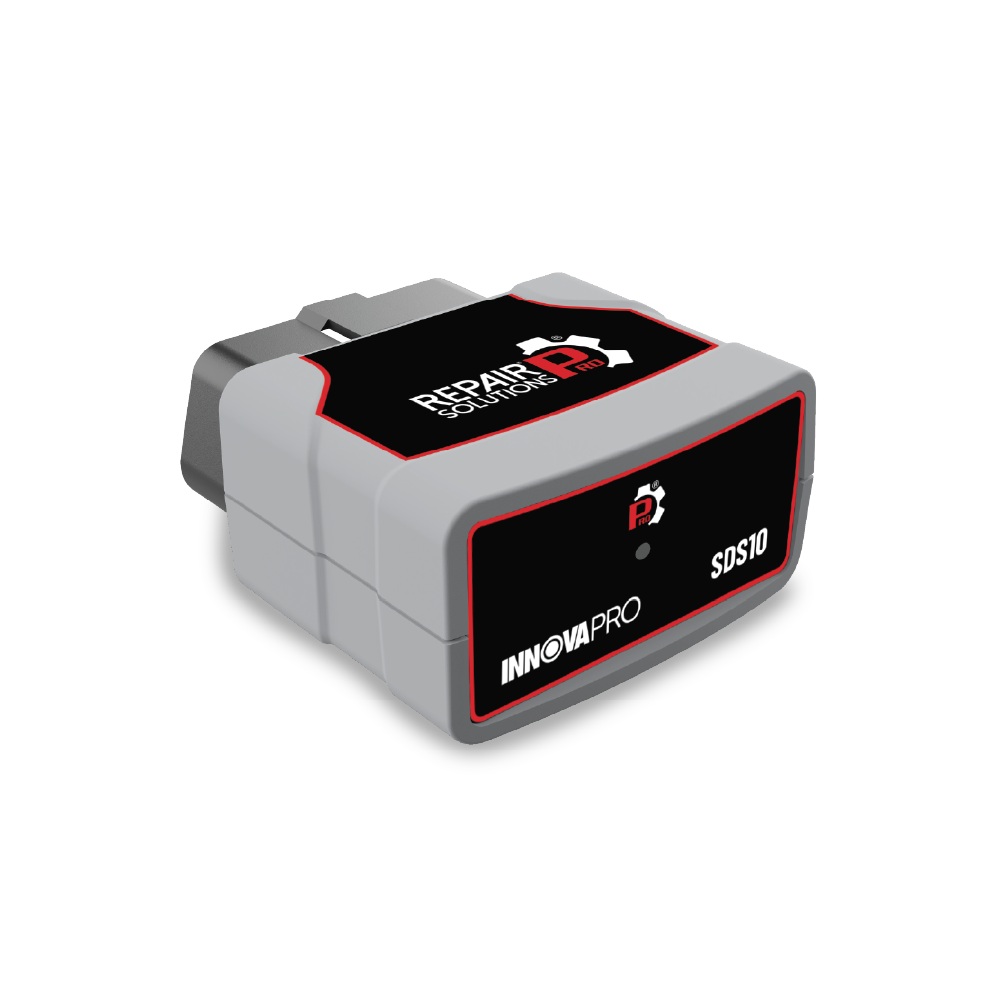

SDS10: Intelligent Diagnostic Dongle

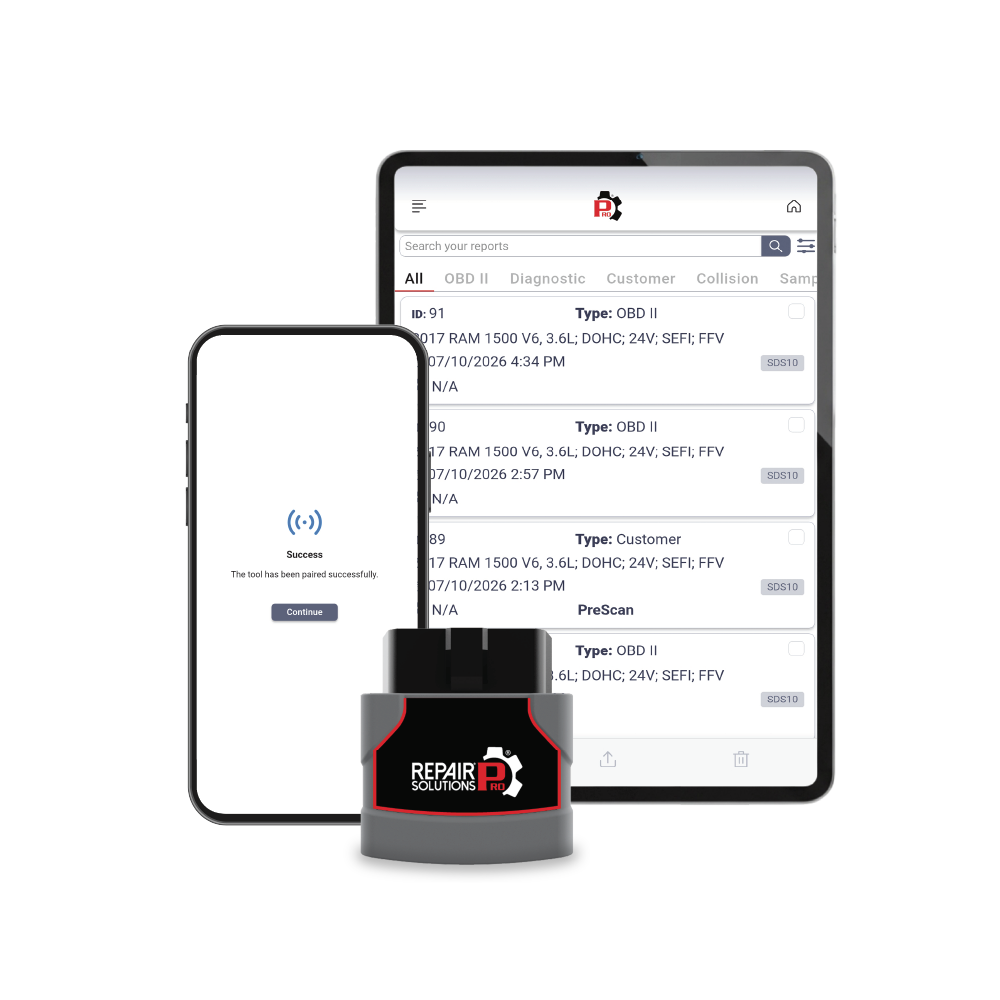

Powered by RepairSolutionsPRO®The INNOVAPRO SDS10 is a compact wireless diagnostic dongle delivering OBD II and OEM diagnostics and service functions through your smartphone or tablet. The SDS10 supports Active Tests and Special Functions on compatible vehicles and systems. It provides integrated access to Verified Fixes, Repair Tips, TSBs, Scheduled Maintenance, Warranty Info, and Lifetime Free Updates within your diagnostic workflow.
Features & Specifications
OBD II Diagnostics
Check Engine
Read and Clear diagnostic trouble codes (DTC) using OBD II mode.
Graph, Record & Playback Live Data
Monitor multiple live data parameters to analyze real-time system interactions. Graph, merge, and record PIDs to catch intermittent faults, then easily save and share recordings with fellow technicians or technical support for collaborative troubleshooting.
OBD Testing Modes ($05, $06 & $08)
Mode $05 (O2 Sensor Monitoring): View diagnostic test results for Oxygen Sensors (voltage & response times).
Mode $06 (On-Board Monitoring): View raw diagnostic test results for non-continuously monitored systems (misfire counts, EVAP pressure) before a DTC triggers.
Mode $08 (Component Control): Request the ECU to control on-board systems or perform test procedures (e.g., EVAP leak test).
Mode $06 (On-Board Monitoring): View raw diagnostic test results for non-continuously monitored systems (misfire counts, EVAP pressure) before a DTC triggers.
Mode $08 (Component Control): Request the ECU to control on-board systems or perform test procedures (e.g., EVAP leak test).
All 10 OBD II Modes
Access and utilize all 10 diagnostic modes defined by the OBD II standard. This allows for comprehensive vehicle diagnostics, including: reading current data, retrieving and clearing trouble codes, monitoring system tests, and more.

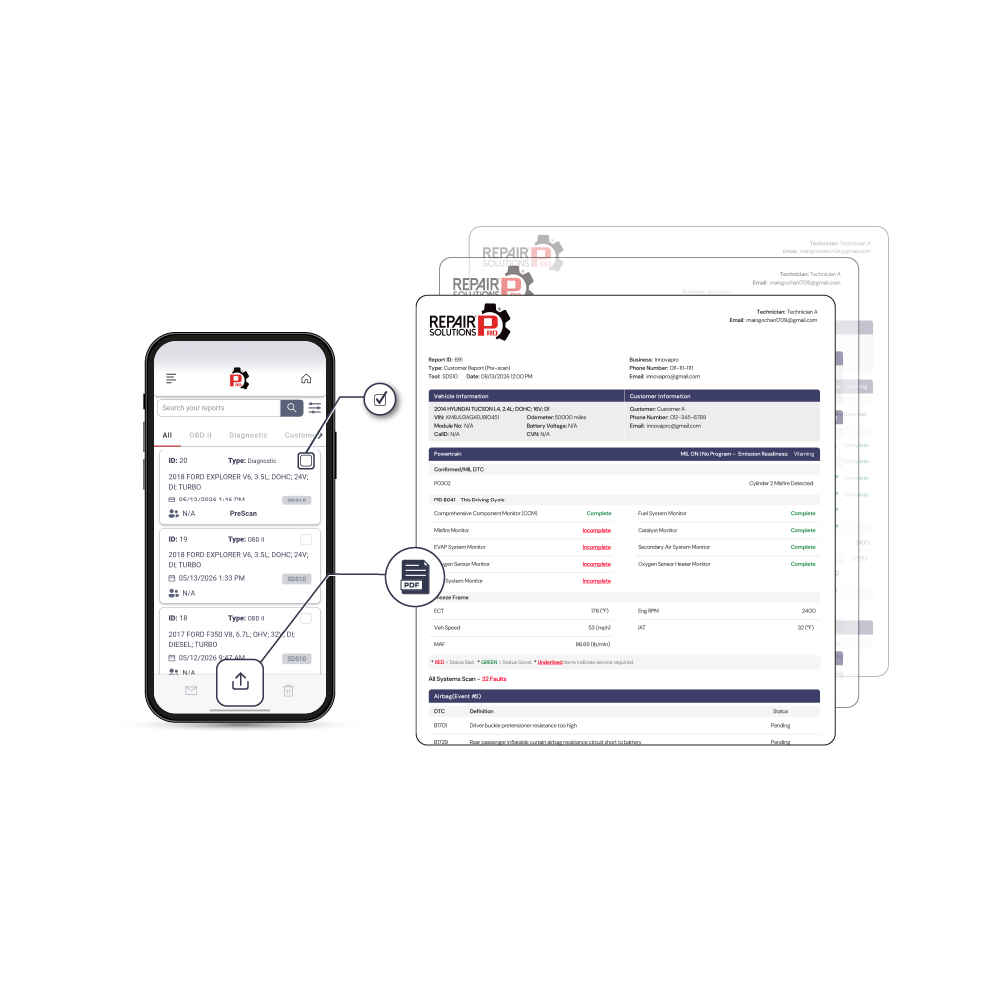

OBD II Reports
Automatically compile and save complete OBD II scan data—including DTCs, freeze frame snapshots, and emissions readiness status—into a diagnostic report to track vehicle repair history and share with customers. View sample report
OEM Diagnostics
All Systems Scan
Read and clear OEM-level DTCs for ABS, SRS, ECM, TCM, and all other vehicle systems.
OEM Live Data
ECM, TCM, PCM, ABS, SRS, TPMS.
OEM ECU Info
Retrieves and displays the specific information for the tested control unit, including Protocol, ECU ID, version number and other specifications.
Active Tests / Bi-Directional System Test
Enable and disable actuators, relays and components for the ECM/PCM and TCM systems across 7 brands (check the Coverage Checker for vehicle-specific availability). View 7 brands
Special Functions
Perform routines, self-tests, and calibrations. Receive diagnoses, services, and repairs on ECM/PCM and TCM systems across 7 brands (check the Coverage Checker for vehicle-specific availability). View 7 brands
14 Workshop Tools
Access routines, self-tests and calibrations used for service and repairs, including: Oil Maintenance Reset, Battery Reset, Electronic Parking Brake Reset, Steering Angle Sensor (SAS) Reset, Anti-Lock Braking System Bleeding, Battery/Alternator Test, EV/HEV/PHEV Battery Health, etc. View 14 services
Reads TPMS/Tire Pressure
Provides real-time information on tire pressure and status, which mechanics or diagnostic technicians can use during vehicle inspections.
Warning Light Indicator
Examine the detailed information relating to Warning Light Indicator. Includes ABS, SRS, and TPMS Warning Light, which mechanics and diagnostic technicians utilize during vehicle inspections.
Battery/Alternator Test
Performs a check of the vehicle's battery and alternator system to ensure the system is operating within acceptable limits.
Reads Hybrid Battery Cells Voltage
Inspect the high-voltage battery pack in a hybrid or electric vehicle. This test displays parameter-related metrics for the HEV/EV battery pack. For some vehicles, it is able to display the individual battery block voltage of the HEV/EV battery pack in the form of a chart for easy comparison.
Secure Gateway Access (FCA, Nissan)
Technicians registered with AutoAuth can access secure gateway on most 2018+ FCA (Chrysler, Dodge, Jeep, RAM, Fiat) and 2020+ Nissan vehicles.
Without SGW access, diagnostic capabilities are limited to basic functions such as reading DTCs and viewing live data. Advanced features—including clearing codes, special functions, active tests, resets, relearns, and calibrations—will be unavailable.
Without SGW access, diagnostic capabilities are limited to basic functions such as reading DTCs and viewing live data. Advanced features—including clearing codes, special functions, active tests, resets, relearns, and calibrations—will be unavailable.
RepairSolutionsPRO® platform
Verified Fixes & Repair Tips
Access Verified Fixes and Repair Tips matched to the vehicle year, make, model, and DTCs. Repair Tips may include Initial Inspection, Possible Cause, Diagnostic Procedures with pinout specifications, and Repair Validation relearns. Explore Repair Tips
TSBs & Recalls/Scheduled Maintenance/Predicted Failures
Access OEM Technical Service Bulletins (TSBs), safety recalls, factory scheduled maintenance intervals, and predicted component failure alerts integrated directly into your diagnostic workflow.
Generate Multi-Type Business Reports (Customers, Diagnostics, Collisions, DVI)
Generate 4 report types: Diagnostic Reports for technician review, Customer Reports, Collision Reports for insurance documentation with side-by-side PreScan and PostScan verification, and Digital Vehicle Inspection (DVI) Reports with multi-system checks and photo attachments. Explore Report Types
RSPRO® Web Portal (Shop Workflow)
Sync scan reports instantly from the service bay to front-line advisors. Manage vehicle history, share reports with team members, join in the Give/Get Fix tech network for peer support, and tap into Technical Center repair articles anytime.
Repair Info Powered by MOTOR (Additional Subscription)
Optional 1-click access to 4 key MOTOR diagnostic resources for Confirmed/MIL DTCs: Detailed DTC Troubleshooting Guides, OEM Wiring Diagrams, Exact Component Locators, and Factory Specifications. View Optional add-on
Specifications
Pin Count

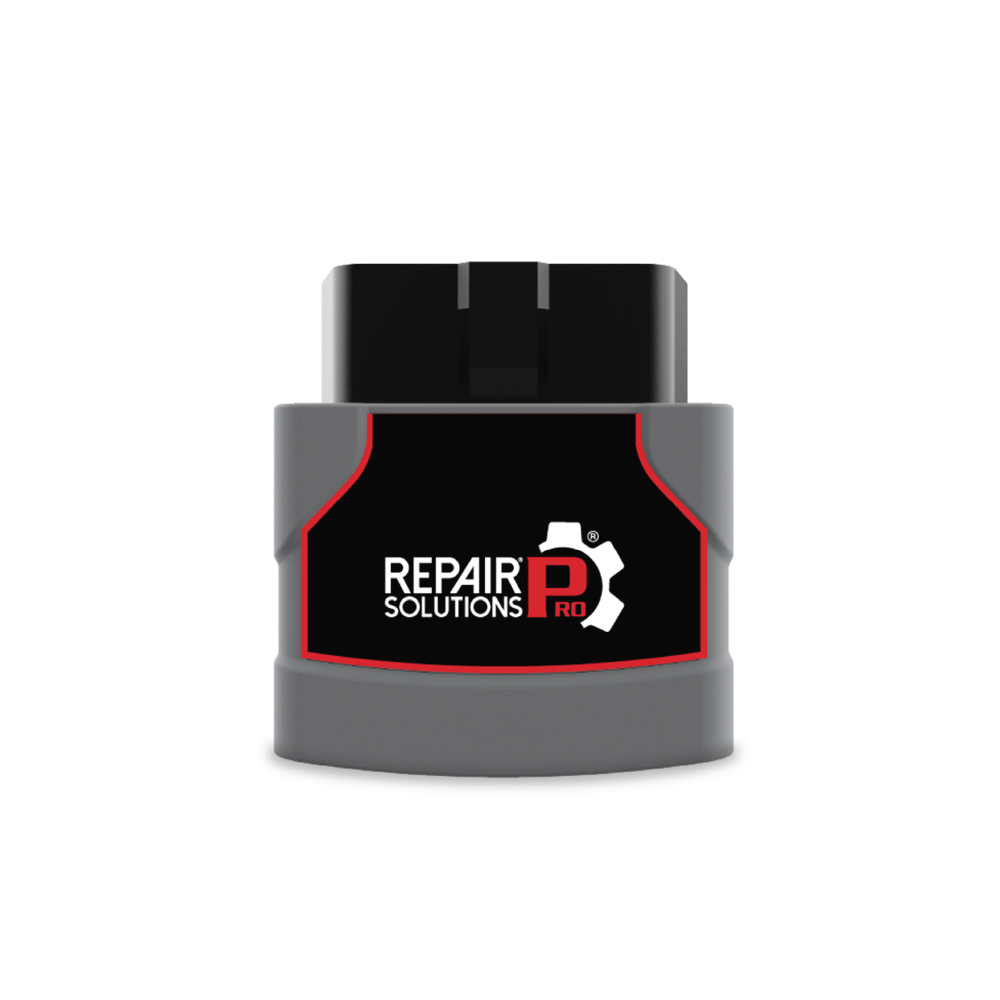

16-Pin OBD II Connector
ASIC Chip
2nd Gen ASIC
Bluetooth
Bluetooth 5.2 (BLE + Classic)
Dimension (L x W x H)
53 mm × 48 mm × 26 mm (2.09 in × 1.89 in × 1.02 in)
Operating System
iOS 14+, Android 6+

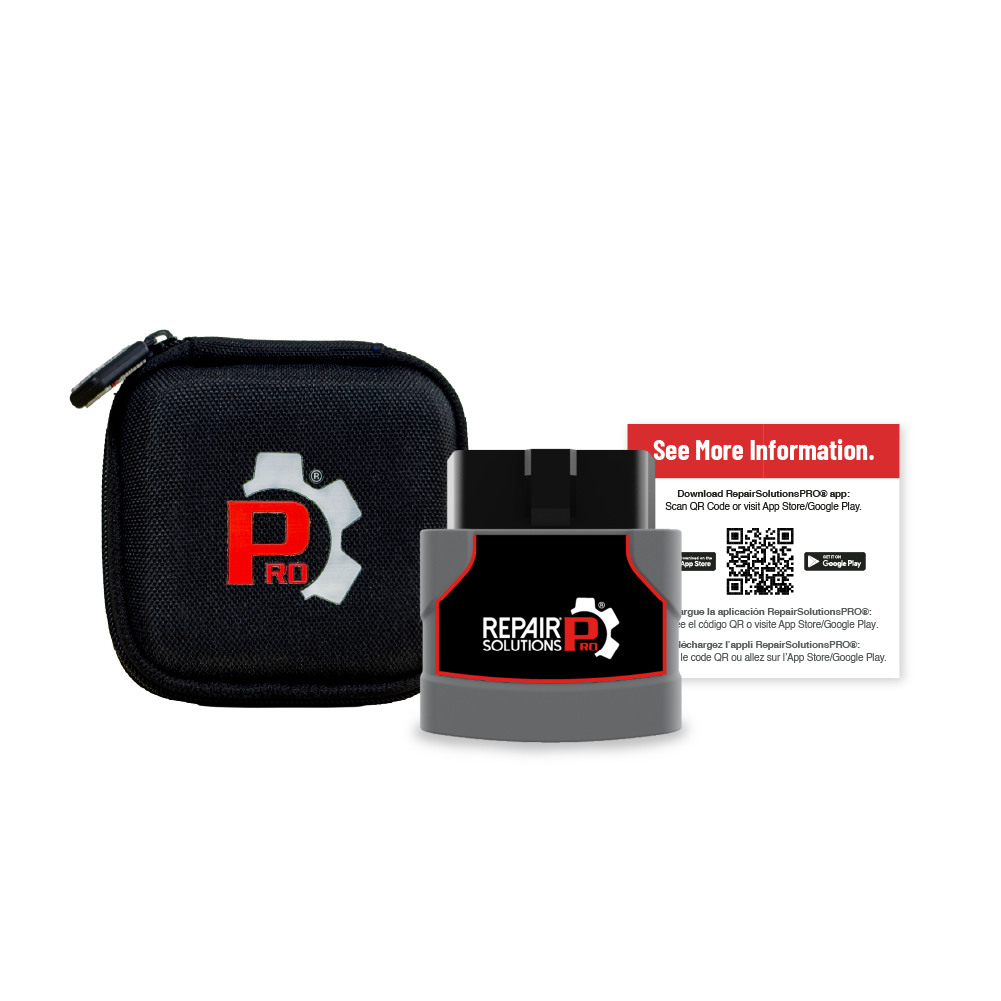

Product Includes
Dongle SDS10
Insert card
RSPRO® Pouch
